How to Install Composite Decking in the UK: Step-by-Step Guide

Installing composite decking correctly is just as important as choosing the right boards. A high-quality composite deck can still develop movement, uneven boards or drainage problems if the subframe, joist spacing, expansion gaps or fixings are wrong.

This step-by-step guide explains how to install composite decking in the UK, from planning and ground preparation through to building the subframe, fitting starter clips, laying the boards and finishing the edges.

The exact installation requirements vary between composite decking products, so always follow the specification supplied with the particular boards you are using.

Composite Decking Installation: Quick Overview

Stage	What You Need to Do
1. Plan the deck	Measure the area, choose board direction and calculate materials.
2. Prepare the ground	Create a stable, well-drained base with adequate clearance.
3. Build the subframe	Install suitable joists at the spacing specified for your boards.
4. Check drainage and ventilation	Make sure water can escape and air can circulate below the deck.
5. Fit starter clips	Secure the first board accurately and square to the frame.
6. Lay the boards	Use the correct hidden clips, gaps and fixing method.
7. Finish the perimeter	Cut boards neatly and install trims, fascia or edging.
8. Inspect the deck	Check movement, drainage, gaps and fixings before use.

What Tools Do You Need to Install Composite Decking?

Most domestic composite decking installations can be completed using standard woodworking and construction tools.

Essential Tools

• tape measure;
• long spirit level or laser level;
• pencil or marking tool;
• chalk line;
• cordless drill and driver;
• appropriate drill bits;
• circular saw, mitre saw or suitable hand saw;
• fine-tooth or manufacturer-recommended cutting blade;
• square;
• rubber mallet;
• appropriate personal protective equipment.

Typical Materials

• composite decking boards;
• timber, composite or aluminium joists suitable for the project;
• starter clips;
• hidden fixing clips;
• corrosion-resistant screws;
• fascia boards, L-trims or edging;
• weed-control membrane where appropriate;
• gravel or other drainage material where required;
• support pads, posts or foundations depending on the deck design.

Vigo Home stocks decking screws and fixings along with decking joists and finishing trims for composite decking projects.

Step 1: Plan the Composite Deck Before You Start

Good decking installation starts before any boards are cut.

Measure the intended deck area accurately and decide:

• the finished length and width;
• the direction the decking boards will run;
• where board joints will fall;
• the position of doors and thresholds;
• the location of drains and inspection covers;
• how the perimeter will be finished;
• where steps or changes in level will be required;
• how water will drain away from the deck.

Drawing a simple plan before ordering materials makes it much easier to estimate board quantities, joists, clips, trims and wastage.

Allow for Cutting and Wastage

Do not order exactly the theoretical square metre area of the deck. Cuts, board layout and defects can all create wastage.

The amount required varies according to the shape of the deck and board direction. Simple rectangular installations usually generate less waste than diagonal layouts or decks containing multiple corners and obstacles.

Step 2: Choose the Right Composite Decking Board

Before designing the subframe, confirm exactly which decking board will be installed.

Composite decking can be manufactured as:

• round hollow;
• square hollow;
• solid;
• uncapped WPC;
• capped or co-extruded composite decking.

Different profiles can require different joist centres, fixing systems and expansion allowances.

If you have not yet chosen a profile, read our square vs round hollow composite decking guide or browse the Vigo Home composite decking range.

Step 3: Check Whether Planning Permission May Be Required

Most simple ground-level garden decks do not create major planning issues, but rules depend on the location, property and height of the structure.

Planning regulations also differ across England, Scotland, Wales and Northern Ireland.

In England, permitted development rules generally allow garden decking under Class E only where the platform is not more than 0.3 metres above ground level and the other relevant conditions are satisfied. Higher raised platforms are treated differently.

If the property is listed, in a conservation area, subject to restricted permitted development rights, or the deck is substantially raised, check with the relevant local authority before beginning work.

For England, you can also check the current GOV.UK permitted development guidance.

Step 4: Prepare the Ground

The deck should sit above a stable base that allows water to drain rather than collect underneath the structure.

Installing Over Soil or Grass

For a basic ground-level installation:

1. Remove vegetation and unstable topsoil.
2. Level and compact the area where required.
3. Install a suitable weed-control membrane if appropriate.
4. Add a stable, free-draining base such as compacted aggregate or gravel where the design requires it.
5. Ensure the supporting frame will not sit directly in standing water.

Do not simply place decking joists directly onto soft soil. Movement in the ground can lead to an uneven frame and unstable decking.

Installing Composite Decking Over Concrete

Composite decking can also be installed over a suitable existing concrete or paved surface provided that:

• the surface is structurally sound;
• water can drain away;
• the joists or support system are isolated appropriately from trapped moisture;
• there is enough clearance for ventilation and the complete decking system.

Do not block existing drainage routes.

Step 5: Build the Decking Subframe

The subframe is one of the most important parts of the entire installation.

If the joists are uneven, incorrectly spaced or insufficiently supported, the finished decking may feel unstable regardless of the quality of the boards.

Common Subframe Materials

Decking subframes may use:

• appropriately treated structural timber;
• composite joists or battens;
• aluminium systems;
• other purpose-designed structural decking systems.

The correct material depends on deck height, span, ground conditions and structural requirements.

How Far Apart Should Composite Decking Joists Be?

There is no single joist spacing that applies to every composite decking board.

The required centres depend on:

• board thickness;
• board profile;
• hollow or solid construction;
• material formulation;
• load requirements;
• whether the boards run perpendicular or diagonally to the joists.

Use the joist spacing specified for the exact decking product. Do not automatically copy spacing from another brand or board profile.

Diagonal board layouts may require closer joist centres because the effective unsupported span increases.

Step 6: Check the Subframe Is Square and Level

Before installing any decking boards, measure the completed frame carefully.

Check:

• the overall dimensions;
• the diagonals to confirm the frame is square;
• joist centres;
• support points;
• levels;
• drainage;
• clearance from walls and fixed structures.

Correcting the frame now is much easier than trying to compensate with the decking boards later.

Step 7: Allow for Drainage and Ventilation

British weather makes drainage particularly important.

Composite decking itself may have good resistance to moisture, but the complete deck contains a subframe, fixings and surrounding materials that also need to dry properly.

Avoid designs that trap water beneath the decking.

The installation should allow:

• water to escape below the structure;
• air to circulate beneath the boards;
• leaves and debris to be removed where practical;
• drains and ventilation openings to remain accessible.

Where a deck is installed close to the house, take particular care not to obstruct damp-proof courses, air bricks or other building ventilation.

Step 8: Plan Expansion Gaps

Composite decking expands and contracts as temperature and moisture conditions change.

This movement needs to be allowed for during installation.

Gaps may be required:

• between the ends of adjoining boards;
• between decking and walls;
• around posts;
• around fixed structures;
• at perimeter edges.

Do not assume that every composite board requires the same 5 mm or 6 mm gap.

The correct allowance depends on the board material, board length, installation temperature and manufacturer guidance.

This is particularly important on long runs where thermal movement can accumulate across several metres.

Step 9: Install the Starter Clips

Once the frame has been checked, establish a straight reference line for the first decking board.

The first board determines the alignment of everything that follows, so spend time getting it right.

1. Mark the position of the first board.
2. Install the appropriate starter clips along the supporting joists.
3. Keep the clips aligned using a straight edge or chalk line.
4. Do not overtighten screws unless the fixing manufacturer specifically requires it.
5. Fit the first board into the starter clips and check alignment again.

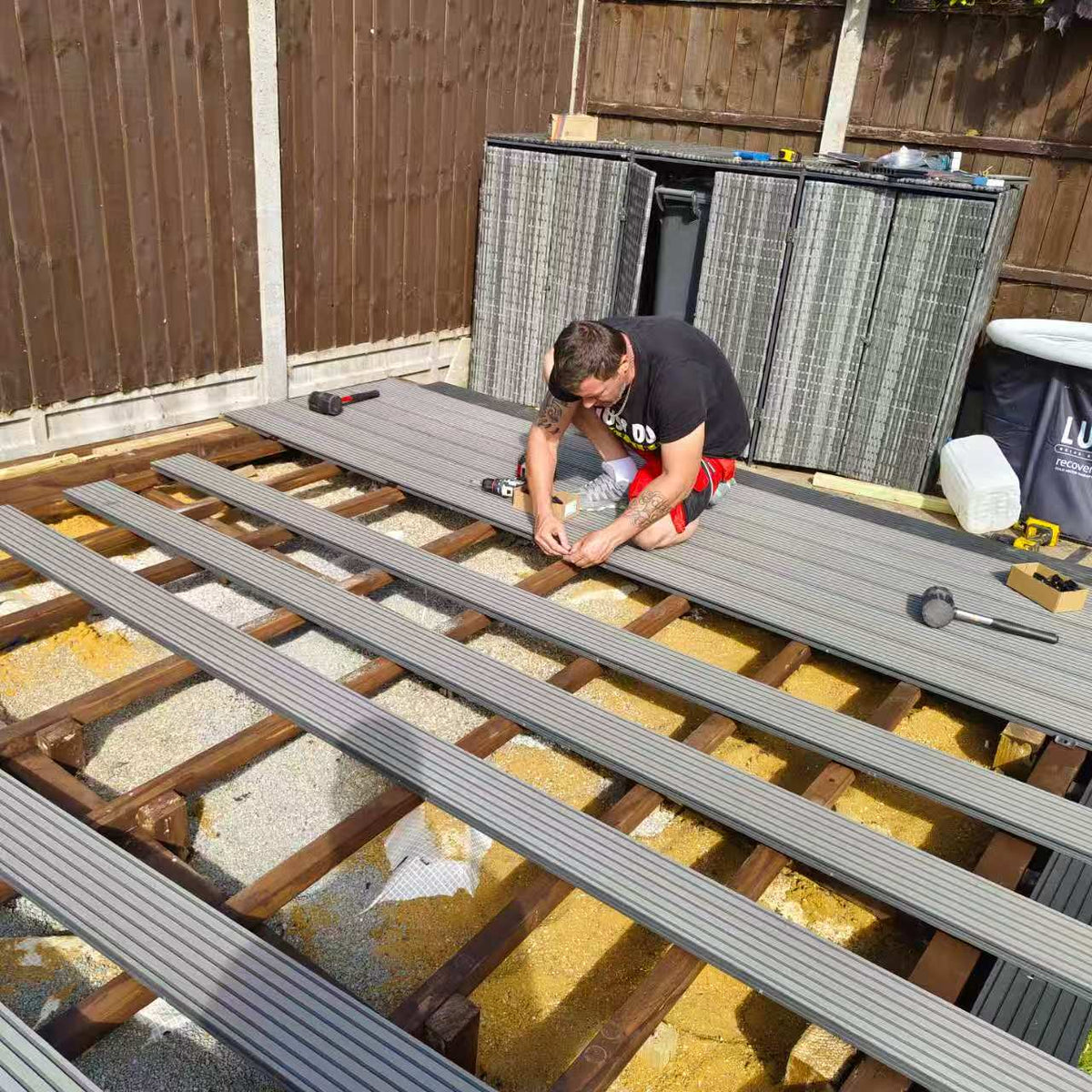

Step 10: Lay the Composite Decking Boards

Most grooved composite decking systems use hidden clips fitted into the side channels of the boards.

A typical process is:

1. Fit the first board securely into the starter clips.
2. Position hidden clips into the groove at each supporting joist.
3. Bring the next board into position.
4. Make sure the clip is correctly engaged with both boards.
5. Secure the fixing according to the clip manufacturer's instructions.
6. Repeat across the deck while regularly checking alignment.

Hidden fixing systems create consistent spacing between the long edges of the boards and avoid visible face screws across most of the finished deck.

Do Not Overtighten Composite Decking Clips

Overtightening can distort clips, prevent normal board movement or pull components out of alignment.

The fixing should secure the board according to the system specification without unnecessarily clamping the decking against its designed movement.

Step 11: Support Every Board Joint Correctly

Where two decking board ends meet, both ends need adequate support.

Do not leave board ends hanging beyond the supporting structure or attempt to secure two unsupported ends using a single poorly positioned fixing.

Depending on the installation system, board joints may require:

• double joists;
• additional blocking;
• separate clips for each board end;
• manufacturer-specific joint details.

Good joint support improves alignment and helps avoid movement at the board ends.

Step 12: Cut Composite Decking Correctly

Most WPC composite decking can be cut using conventional woodworking equipment, although the exact blade specification should follow the product guidance.

For clean cuts:

• mark the cutting line accurately;
• support the board on both sides of the cut;
• use a sharp blade;
• cut at a controlled speed;
• wear appropriate eye, hearing and respiratory protection;
• remove cutting dust before completing the deck.

Where several board ends need to form one straight edge, installers often leave them slightly long and trim the entire perimeter together after the main deck has been laid.

Step 13: Finish the Edges of the Deck

Exposed board ends can be finished in several ways depending on the board system and desired appearance.

Options include:

• matching fascia boards;
• L-shaped trims;
• bullnose or dedicated edging boards;
• manufacturer-approved end caps.

Choose the edging method before building the frame because some finishing systems require additional perimeter support.

You can view Vigo Home's decking joists and finishing trims when planning the perimeter detail.

Step 14: Carry Out Final Installation Checks

Before using the deck, inspect the entire installation.

Check that:

• all boards are properly supported;
• clips and fixings are secure;
• expansion gaps remain clear;
• there are no obvious loose boards;
• the perimeter is finished safely;
• water can drain away;
• air bricks and drainage points are unobstructed;
• cutting debris has been removed.

Clean the finished surface according to the board manufacturer's guidance before moving furniture onto the deck.

Common Composite Decking Installation Mistakes

Using the Wrong Joist Spacing

Joists that are too widely spaced can allow excessive board movement or flex. Always design the frame around the exact board specification.

Ignoring Expansion

Composite boards move as environmental conditions change. Installing boards tightly against walls or against each other can create problems later.

Poor Drainage

Water should not be trapped beneath the deck. Drainage and ventilation need to be considered before the frame is installed.

Installing Joists Directly on Unstable Soil

The subframe needs stable support. Soft or poorly prepared ground can settle and cause the deck to become uneven.

Blocking Air Bricks or Damp-Proof Details

Decking installed beside a property should not compromise existing building ventilation or damp-protection systems.

Overtightening Fixings

Hidden clips are part of an engineered fixing system. Excessive tightening can interfere with their intended function.

Forgetting Support at Board Ends

Every board joint and end needs appropriate support. Unsupported ends can move and create an untidy finish.

For more DIY-specific mistakes, tools and planning tips, read our DIY composite decking installation guide.

Can You Install Composite Decking Yourself?

Yes. A straightforward low-level rectangular composite deck can be a realistic DIY project for someone who is comfortable measuring, cutting materials and constructing a level frame.

However, professional help is worth considering where the project involves:

• a significantly raised deck;
• steps or balustrades;
• complex structural work;
• challenging ground conditions;
• multiple levels;
• drainage alterations;
• large commercial or heavily loaded areas.

If you would prefer professional installation, Vigo Home has a growing network of independent professionals. Visit our Find an Installer page and send us your postcode and project details.

How Long Does Composite Decking Installation Take?

The installation time depends on the size and complexity of the project.

A small rectangular ground-level deck with an existing prepared base may be completed much faster than a raised or multi-level deck requiring new foundations, steps and detailed perimeter finishing.

In many projects, building and levelling the subframe takes as much time as installing the visible decking boards.

Do not rush the frame to save time. Accuracy at the subframe stage usually makes the rest of the installation much easier.

How Much Does It Cost to Install Composite Decking?

The total cost of a composite deck is made up of more than the decking boards.

Budget for:

• decking boards;
• subframe materials;
• supports or foundations;
• starter and hidden clips;
• screws and fixings;
• fascia or perimeter trims;
• delivery;
• wastage;
• professional labour where required.

A simple DIY ground-level installation will have a very different total cost from a professionally constructed raised deck.

Browse our composite decking boards and decking fixings to calculate the material requirements for your project.

How to Maintain Composite Decking After Installation

Once correctly installed, WPC composite decking generally requires less decorative maintenance than traditional timber.

However, it still needs routine care.

Keep the deck clear of leaves and debris, clean spills promptly, control algae in damp areas and periodically inspect the boards, fixings and subframe.

Read our full guide on how to clean and maintain composite decking in the UK.

Frequently Asked Questions

How far apart should joists be for composite decking?

There is no universal joist spacing for all composite decking. The correct centres depend on board thickness, construction, profile, load and installation angle. Always follow the specification for the exact decking board being installed.

How much gap should you leave between composite decking boards?

The required gaps depend on the decking system, board length, material formulation and installation temperature. Hidden clips normally control side-to-side spacing, while end gaps and clearances from fixed structures should follow the manufacturer's instructions.

Can composite decking be laid directly on soil?

The decking boards themselves should not simply be laid directly onto soil. They require an adequately supported subframe installed over a stable, properly prepared and drained base.

Can composite decking be installed over concrete?

Yes, provided the existing surface is structurally suitable and the deck system has adequate support, drainage, ventilation and clearance. Do not trap water between the concrete and subframe.

Can I screw directly through composite decking?

Some decking systems permit or require face fixing in particular locations, while many grooved boards use hidden clips. Follow the fixing method designed for the specific product rather than assuming ordinary timber decking screws can be used everywhere.

Which way should composite decking boards run?

The board direction is mainly determined by the design, drainage, dimensions of the space and joist layout. Boards must be properly supported by joists arranged for the chosen direction.

Do you need a slope on composite decking?

The exact drainage requirements depend on the decking system and site. Water should not be allowed to remain trapped on or beneath the installation, so follow the manufacturer's guidance and design the overall structure to provide effective drainage.

Do you need planning permission for composite decking?

It depends on the property, location and height of the deck. In England, garden decking not exceeding 0.3 metres in height may fall within permitted development where the other Class E conditions are satisfied. Different rules or restrictions can apply elsewhere in the UK, to listed properties and to restricted locations, so check with the relevant planning authority where necessary.

Can I install composite decking myself?

Many homeowners can install a simple ground-level deck themselves if they are competent with measuring, cutting and building a suitable subframe. Raised, structural or complex projects may be better handled by an experienced installer.

Vigo Home Composite Decking Installation Products

Vigo Home supplies WPC composite decking, joists, fixings and finishing accessories for garden projects across the UK.

Our decking range includes different hollow profiles, colours and surface finishes, allowing you to choose the board specification that suits the project before designing the supporting frame.

Explore:

• Composite Decking Boards
• Decking Screws & Fixings
• Decking Joists & Trims
• Find a Composite Decking Installer

Final Checklist Before Installing Composite Decking

• Measure and plan the entire deck before ordering.
• Confirm the specification of the decking board.
• Prepare a stable and free-draining base.
• Build a straight, square and properly supported subframe.
• Use the correct joist spacing for the board.
• Maintain ventilation and drainage.
• Follow the correct expansion-gap requirements.
• Use compatible clips and corrosion-resistant fixings.
• Support every board joint correctly.
• Check the finished installation before use.

Correct preparation takes more time, but it is what separates a deck that simply looks good on installation day from one that continues to perform properly over the years.

Ready to start your project? Browse Vigo Home composite decking, fixings and accessories, or find an installer if you would prefer professional help.
